Set it up once. The board keeps it.

You configure RhinoLink from the RhinoLED app, and the controller stores that configuration itself — no cloud account, no WiFi, no subscription. This page covers the guided first setup, what lives on the board versus in the app, how saving works, firmware updates, what a factory reset does, and what to try when something is not behaving.

Now shipping. First production units are going out to customers.

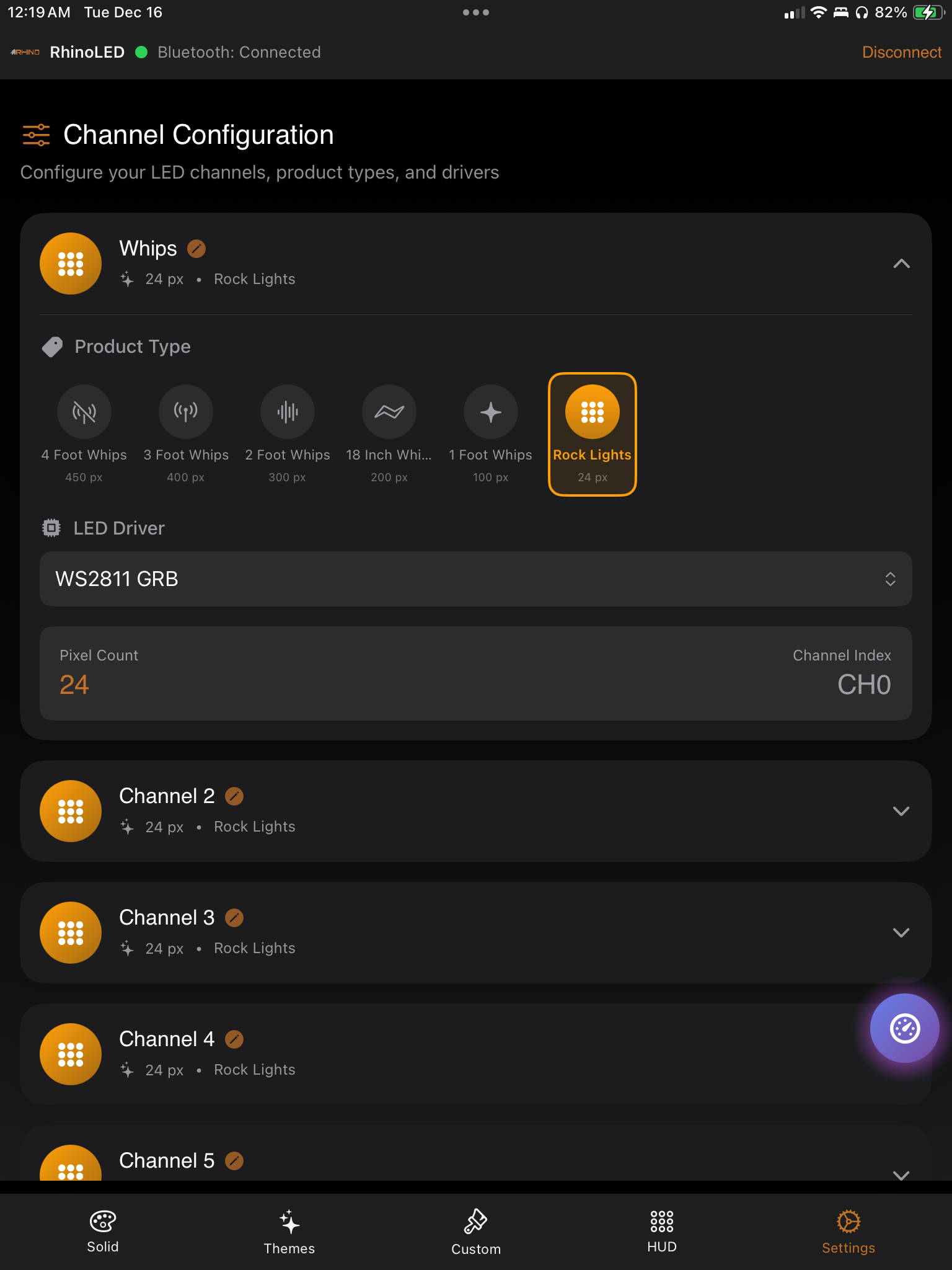

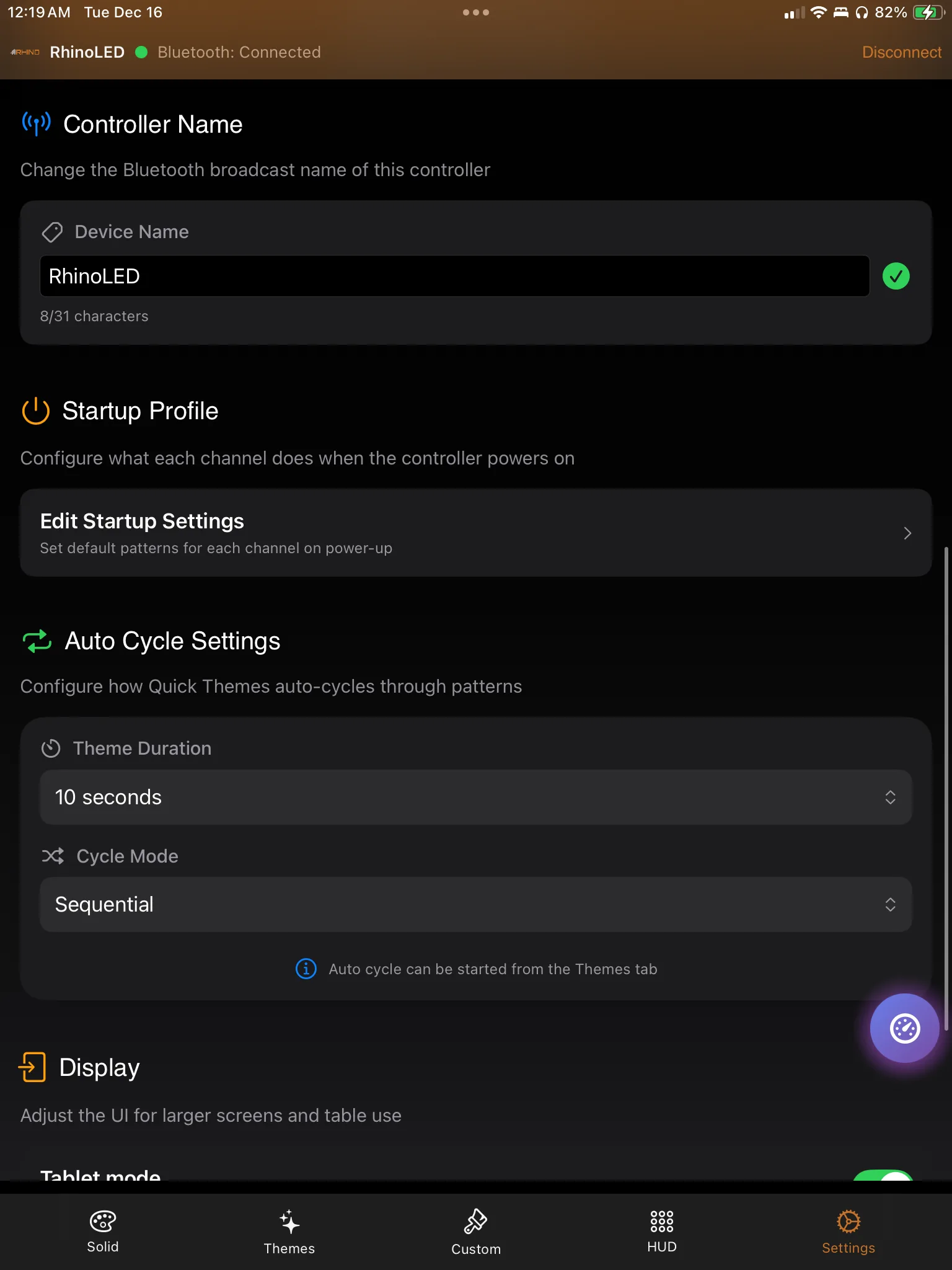

The Settings tab in the RhinoLED app: controller name, channels, outputs, HUD buttons and Startup Profile
First connection

Guided first setup

The first time you connect, RhinoLED opens a setup wizard and walks you through configuring the controller, in order, instead of leaving you to find each screen on your own. You can go back and change anything later — the wizard is a starting path, not a one-time gate.

Step 1

Connect

Connect to the controller over Bluetooth Low Energy from the app. The controller shows up under its Bluetooth name, which you can change once you are in.

Step 2

Work through setup

Setup covers the same things the board stores: your LED configuration and 5 channels, the vehicle inputs you want mapped, output settings, and the state you want at power-on.

Step 3

Ride

From that point the configuration is on the vehicle. You connect again when you want to change something or drive the lighting from the app — not to make the vehicle behave the way you set it up.

Requirements: RhinoLED runs on iPhone, iOS 15.0 or later, free download.

Where settings live

What RhinoLink remembers

Two places hold your settings, and it is worth knowing which is which. The controller holds everything the vehicle needs in order to behave correctly on its own. The app holds the things that are about how you like to work.

On the vehicle

Stored on the controller

Written to the RhinoLink board. It survives power cycles, a new phone, and a reinstalled app.

  • Trigger mappings — which vehicle input drives which action
  • LED configuration — how your 5 channels are set up
  • Startup Profiles — the state selected channels start in at power-on
  • Automotive variant selections — the brake, turn and reverse patterns you chose
  • Output settings — how the 8 relay-triggering outputs behave
  • Bluetooth device name — what the controller calls itself
On your phone

Stored in the app

Kept by RhinoLED on the phone. A factory reset clears these too.

  • HUD layout — how you arranged your control screen
  • HUD buttons — the app-side buttons you built
  • Favorites — the looks you starred
  • Custom themes and My Palette — the colors you mixed and saved
  • App-stored custom patterns — patterns you built in the app
  • App-local channel and output labels — the names you gave them

Where the split matters: a new phone picks up everything stored on the controller, but not what is stored in the app, which stays on the old phone. A factory reset clears both.

On the board

Configuration lives on the board

Your configuration is written to the controller itself. There is nothing behind an account, nothing waiting on a network, and nothing that expires.

No cloud, no account

Settings are stored on the board, not on a server. There is nothing to sign into and no sync step that can be out of date.

No WiFi, no cell service

The app talks to the controller directly over Bluetooth Low Energy. A trailhead with no bars changes nothing about how the vehicle behaves.

No subscription

The controller you bought does the work. Nothing about it stops functioning because something lapsed.

The vehicle works without the phone

Once configured, vehicle-triggered functions run on the board. You connect to change things and to drive the lighting interactively — not to make a mapped input do its job.

The colors or pattern you set from the app keep playing after your phone disconnects, until you change them.

Drivers

Pick the driver for each channel.

The driver tells the controller what kind of LED is on a channel. Rhino lights use the default; change it only for a channel running something else.

Supported LED drivers
Driver in the app Type Color order Channels Pixels per channel
RhinoLEDDefault WS281x RGB GRB All 5 Up to 438
SK6812 RGBW RGBW GRBW All 5 Up to 438
APA106 RGB GRB All 5 Up to 438
LC8812 RGB GRB All 5 Up to 438
TX1812 RGB GRB All 5 Up to 438
TM1914 RGB GRB All 5 Up to 438
TM1829 RGB GRB All 5 Up to 438
Rhino RGBW TM1814, used by Axion, RGB+W whips and RGB+W strip RGBW WRGB, fixed All 5 Up to 438

Each channel runs one driver, so RGB+W lights and RGB lights go on separate channels. They cannot share a data line.

Confirmed third-party products
Product Driver setting Result
DS18 RGB speakers RhinoLED (WS281x), the default Lights in sync with the rest of the system

This chart lists the third-party products Rhino has run on RhinoLink and confirmed. A product that is not listed has not been tested by us.

Saving

Saving happens on its own

There is no save button to remember. The controller waits until you have stopped changing something, then writes it — which is why dragging a brightness slider does not turn into hundreds of separate writes.

  • ~5 sTrigger and input configuration is written after your last edit
  • ~10 sLighting state is written after adjustments stop

Force-saved on disconnect

If you close the app or walk out of range while trigger configuration is still pending, the write is forced before the connection goes away. Leaving mid-edit does not cost you the edit.

Written safely

Settings are written in a way that survives a bad moment. If power is cut in the middle of a save, the controller comes back holding either the previous configuration or the new one — not a half-written mix of the two. A dead battery during a save is an inconvenience, not a bricked configuration.

Practical version: make your changes, then give the controller a few seconds before cutting power. That is the whole rule.

The app reads from the hardware

When RhinoLED connects, it reads the current configuration out of the controller. What you see on screen reflects what the board is actually holding, rather than a local copy the app hopes is still accurate.

That matters in the ordinary cases: you reinstalled the app, you are on a new phone, someone else set the vehicle up, or you simply do not remember what you did last season. Connect, and the app tells you what is really there.

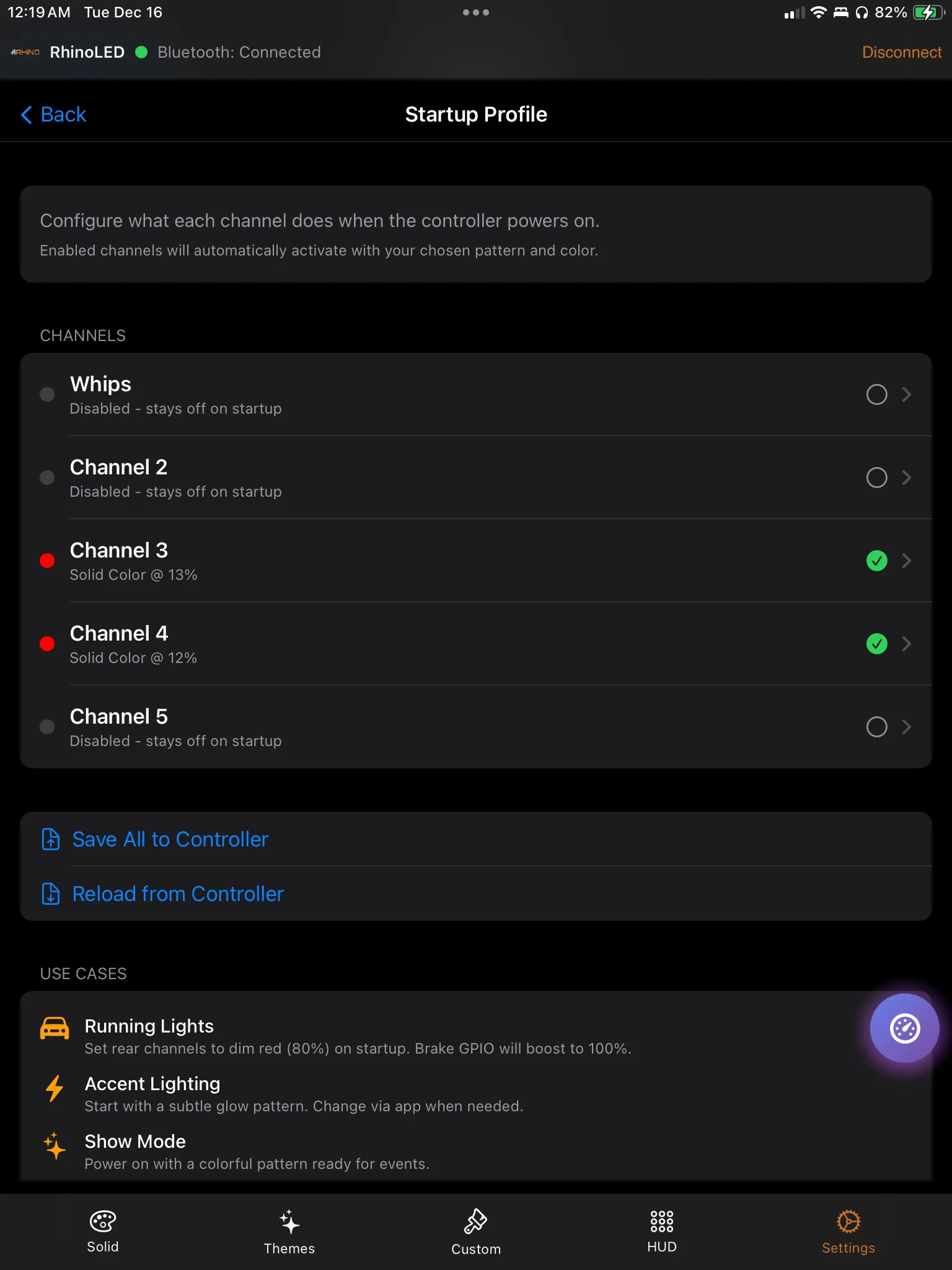

Startup Profiles are stored here too

A Startup Profile is the state you want selected channels to start in when the vehicle powers on — pattern, color, brightness and speed. It is controller-side configuration, applied at power-on with no phone interaction, and it is separate from what happens when a trigger releases a channel.

See how Startup Profiles work, including how they differ from trigger restore.

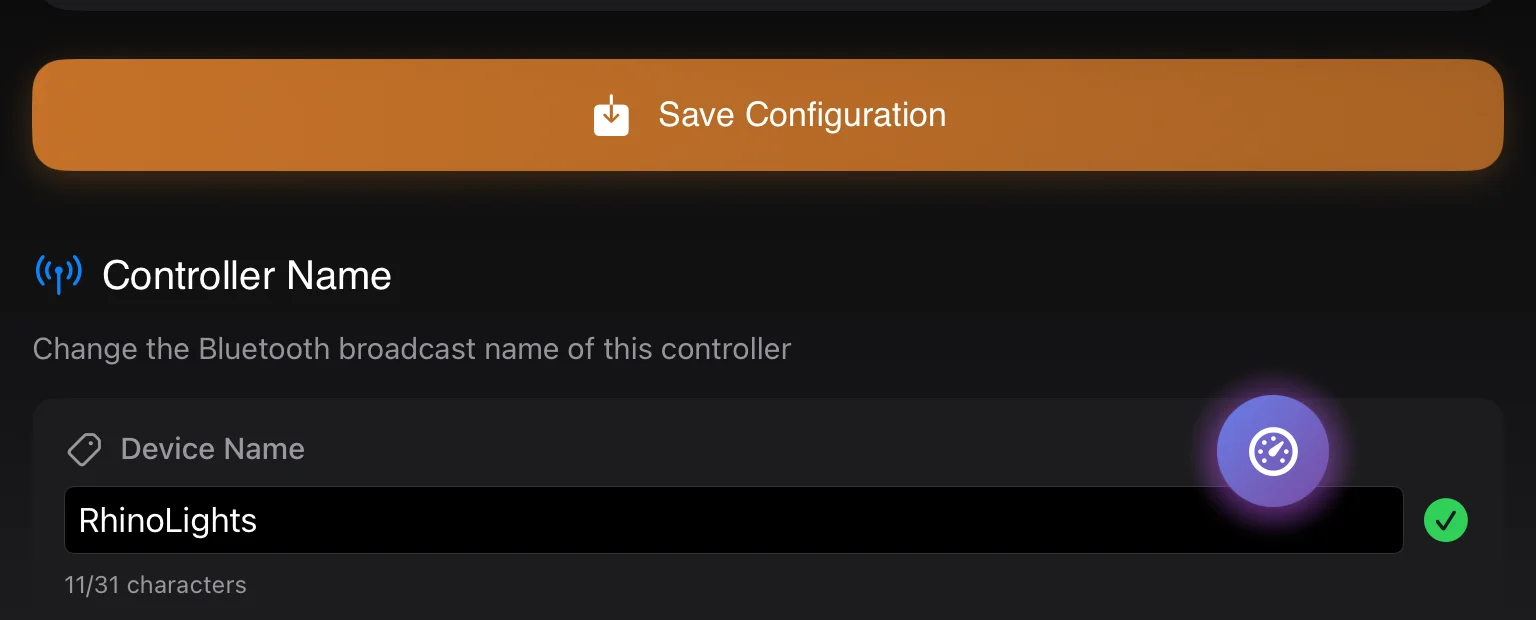

Name the controller

The Bluetooth device name is yours to set, up to 31 characters. Worth doing the moment there is more than one machine in the garage — picking the right controller out of a Bluetooth list is much easier when it is called something you chose.

The name is stored on the board, so it follows the vehicle rather than the phone. A factory reset returns it to RhinoLED.

Firmware updates

Updates come over Bluetooth.

Every RhinoLink takes firmware updates from the RhinoLED app, over the same Bluetooth link you set it up with. No cable and no computer. Settings shows the version your controller is running, and an Update badge when a newer one is out.

Park first

While an update runs, the lights and the outputs are off for a few minutes, brake and turn included. RGB+W lights may run their own color cycle instead of going dark. Never update while driving.

Keep power on and stay close

Leave the ignition or battery switch on, keep the phone within a few feet of the controller, and keep the app open until the update finishes.

Your setup is kept

Your buttons, channels, names and PIN come through an update unchanged.

If it stops part way: the controller waits with its lights off, and your settings are safe. Move the phone close, check the controller has power, and tap Try Again. The update is already on the phone, so the retry does not need internet.

Factory reset

What a factory reset does

A factory reset, started from the Settings screen in RhinoLED, puts everything back to the way it left the shop: the controller and the app. Setup runs again from the start.

Cleared on the controller

Controller-side settings

  • Trigger mappings
  • LED configuration
  • Startup Profiles
  • Automotive variant selections
  • Output settings
  • The Bluetooth name returns to RhinoLED
Cleared in the app

App-side content

  • HUD buttons and layout
  • Favorites
  • Custom themes and My Palette
  • App-stored custom patterns
  • Channel and output names

After the reset

The lighting comes up solid green at approximately half brightness. That is how you know the reset went through. Connect with the app and it walks you through first setup again, the same as on day one.

A reset cannot be undone. Everything on the controller and in the app is gone and has to be set up again. Reach for it when the controller is genuinely misconfigured, not as a first troubleshooting step. Forgot the PIN? You do not need a reset for that: the lock can be cleared at the vehicle, and nothing else changes.

Status

How you can tell what state the controller is in

RhinoLink does not run an elaborate color-code system on your lights, and we would rather say so than invent one. There is one state the lighting itself tells you about:

Freshly reset

After a factory reset the controller drives solid green at approximately half brightness. If that is what you are looking at and you did not expect it, the board has been reset.

Everything else

What you see is your configuration doing what you told it to — a Startup Profile at power-on, remembered runtime state, a trigger holding a channel, or whatever you last set from the app.

When something is off

Troubleshooting

The app will not connect
  1. Check that Bluetooth is on for the phone and enabled for RhinoLED.
  2. Confirm the controller has power — the lights should be lit.
  3. Disconnect in the app, then connect again.
  4. Move closer to the vehicle and retry.
A change did not stick after a power cycle
  1. Give the controller a few seconds after your last edit — trigger and input configuration writes about 5 seconds after you stop, lighting state about 10 seconds after adjustments stop.
  2. Reconnect and check the screen — the app reads the live configuration off the board, so it will show you what actually saved.
  3. Make the change again and let it settle before shutting the vehicle down.
The lights came up solid green at approximately half brightness

That is the post-reset state. The controller has been factory reset, and a factory reset clears the app too, so the whole setup has to be done again: channels, triggers, Startup Profiles, outputs, HUD buttons, themes and palettes. Connect and the app starts first setup.

The controller is not the name you expect in the Bluetooth list

Either it has not been renamed yet or it has been reset — a factory reset returns the name to RhinoLED. Connect and set it to whatever you want, up to 31 characters.

None of the above

Talk to Rhino. Tell us what the lights are doing and what you last changed — that is usually enough to narrow it down quickly.

Configuration that stays on the vehicle.

Set it up once from the app. The controller holds it — through power cycles, new phones and dead zones.

Now shipping. First production units are going out to customers.

More on RhinoLink: RhinoLink overview · the trigger system · automotive patterns · Startup Profile

RhinoLink controls auxiliary and accent lighting. It is not a replacement for required factory vehicle lighting. Lighting regulations vary — check local requirements before public-road use.
