Bluetooth LED Chord App

Included in your order is an index card with QR codes that directly link you to the app store.

Download The App

Controller Name: Rhino Music

LED Chord Rhino Lights LLC as of right now uses an app called LED Chord to control our lights. Use the link below that matches the phone you have to download the app.

Download IOS App Download Andriod App

The controller should be installed in a location away from any heat sources (engine, exhaust, etc.). The controller is waterproof, but it does contain a microphone (used for music mode) that can be affected by mud/water, mount the controller in a place that will not become overly wet or muddy for best results using Music mode.

How to Use the App

Verify Settings

Warning: You must be CONNECTED to the bluetooth controller for it to read and set the settings on the controller.

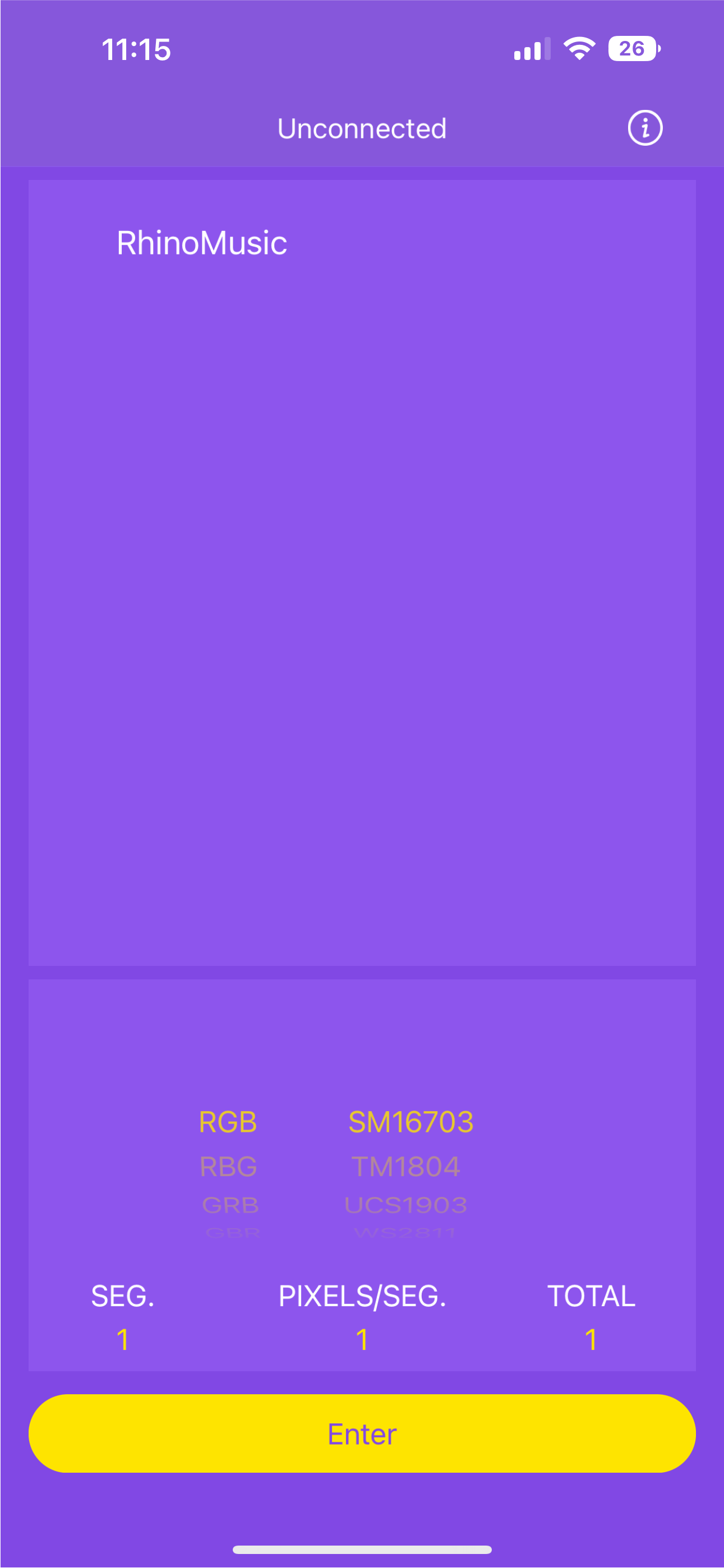

Unconnected

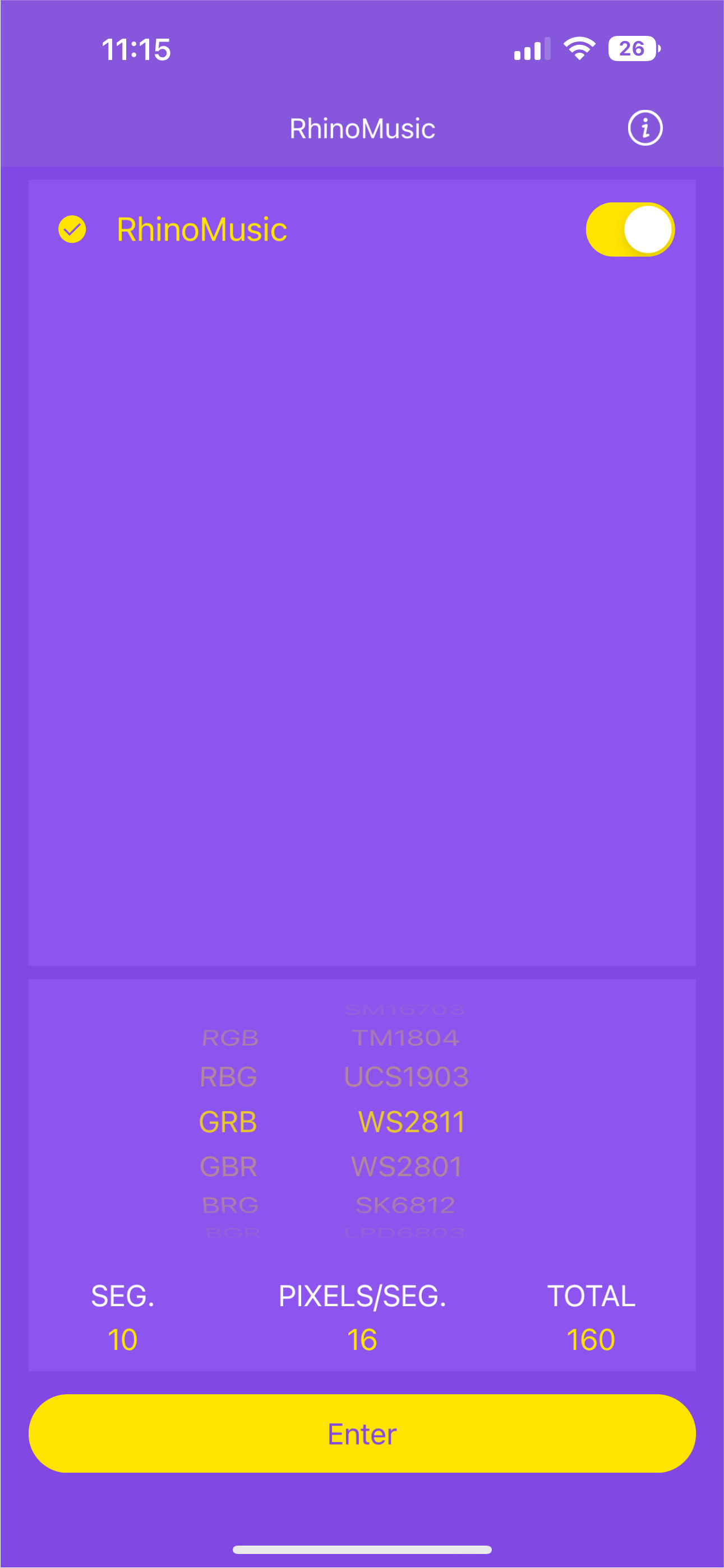

Connected

Settings

Once you are connected you can verify to make sure the settings match the settings to your configuration. The # of segments is determined by your product with the most amount of LEDS. Example: You have a pair of 4ft whips and 6 rock lights, the segments would be 10.

RGB Sequence - GRB
LED Driver - WS2811

WHIP SIZE	SEG.	PEXELS / SEG.	TOTAL PIXELS
Rock Lights ONLY	2	16	32
12" Whips	3	16	64
18" Whips	4	16	64
2ft Whips	5	16	80
3ft Whips	8	16	128
4ft Whips	10	16	160

Sound Isn't Reacting

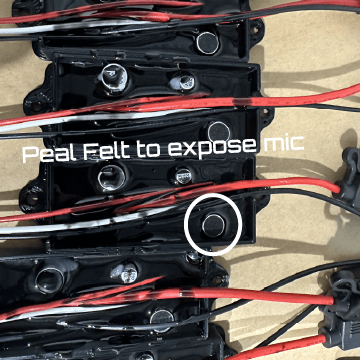

It seems some resin might have gotten on the microphone felt. We hand pour these and do our best to be careful but we are humans. You can peal the felt back gentle to expose the hole underneath. If you are still having issues please contact us.

Advanced Settings

With the LED Chord app you are able to change how the whips look by changing the segments and the pixels / seg. Above are the rough total of LEDs per each whip so as long as your numbers are equal or greater then the below numbers it will fill the whip out.
