Connex Lite Addon Board

Precautions & Tips

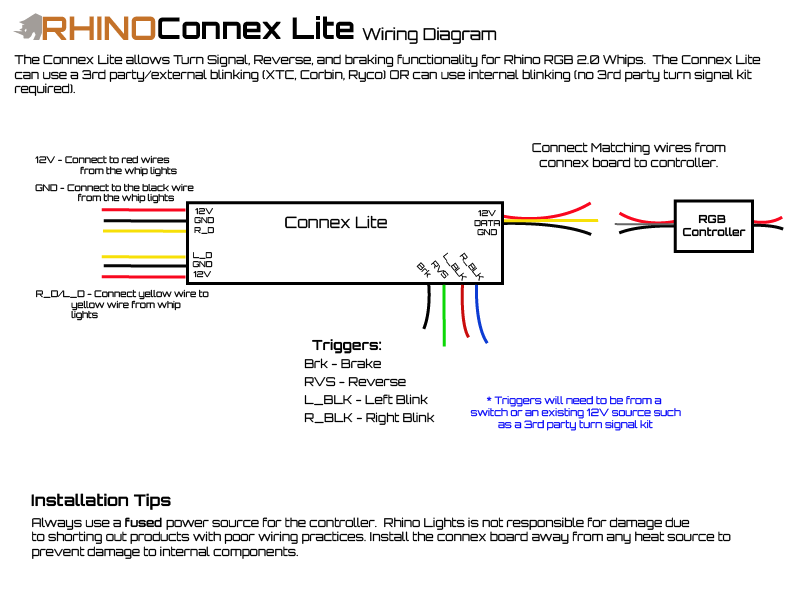

Connex Lite Wiring

Input Channels

These are the input channels that trigger different functionailty based on what channel is triggered with 12 volts.

• 12 Volt (12v)- Power to Connex
  • Use a 16 awg wire along with a fuse and relay to supply power to the Connex board.
  • Switch Recommended - On/Off switch
• Ground (GND)
  • Use a 18awg wire to connect to the ground circuit.
• Data (DATA)
  • Connect this to the data output on the bluetooth controller (White wire).
• Right Blink Trigger (R-BLK)
  • 12 volts activates RIGHT turn signal functionality.
  • Switch Recommended - On/Off/On switch (Combine Left/Right Turn Signal to this switch)
• Left Blink Trigger (L-BLK)
  • 12 volts activates LEFT turn signal functionality.
  • Switch Recommended - On/Off/On switch (Combine Left/Right Turn Signal to this switch)
• Reverse (REVERSE)
  • 12 volts activates reverse functionality which turns L_ALL / R_ALL white. Any products connected to the L_ALL / R_ALL will turn solid white.
  • Switch Recommended - On/Off switch OR Tap into existing reverse trigger
• Brake (BRAKE)
  • 12 volts activates L_ALL / R_ALL braking functionality. Any products connected to the L_ALL / R_ALL will flash Red 5 times then turn solid red when this is triggered.
  • Switch Recommended - N/A - Tap into existing tail light brake trigger

• Left All Channel (L-ALL)
  • This channel was intended for whips.
  • This channel gets affected by LEFT turn signal, brakes and reverse functionality (if enabled).
  • Can be used for any products, contact us for more information on customization.
• Right All Channel (R-ALL)
  • This channel was intended for whips.
  • This channel gets affected by RIGHT turn signal, brakes and reverse functionality (if enabled).
  • Can be used for any products, contact us for more information on customization.
