Rock Light Wiring
Precautions & Tips
Do NOT mount the controller near any heat source! This will causing failure of the internal components. The ABS housing can withstand greater heat then the internal components.
Rock Light Install

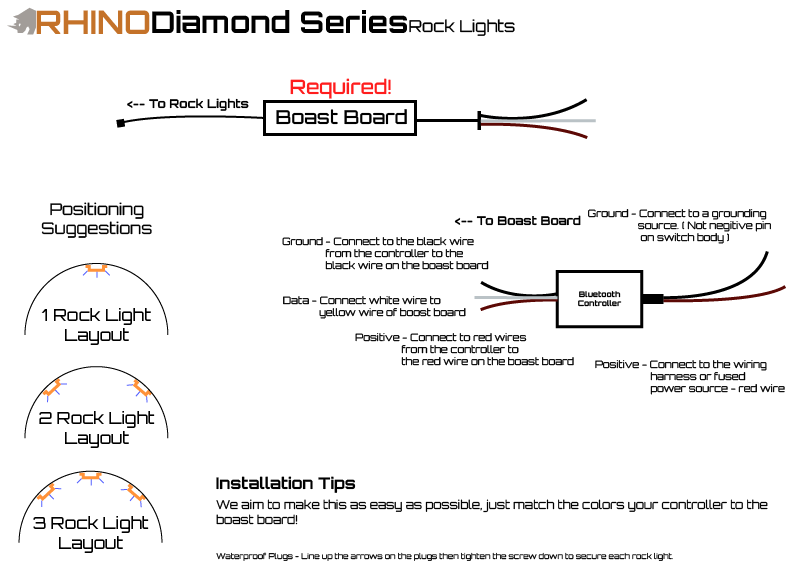

The concept is the same for rgb rock lights as the whip lights, Connect the boost board to the controller matching colors together, red to red, black to black and White and/or Yellow being the DATA lines that need to be connected togehter. You need a boost board to power the RGB rock lights. One boost board can power 16 RGB rock lights. If you want more than 16 rock lights we supply you with another boost board.
Step 1 - Prep
Step 2 - App
Step 3 - Install
