Diamond Duo Cree LED Rock Lights
INTRODUCING THE MOST POWERFUL DUAL COLOR ROCK LIGHT
The most advanced dual color rock light on the market. Extremely Bright with Low Power Draw.
- 18 Watts of Total Power
- 2,200* Lumens per Pod
- Only .6 - 1.3 amps @ 14 volts
- IP69K Durability
- CNC Milled 6061T6 Aluminum
EXTREMELY POWERFUL LEDS
We slammed some of the brightest and most efficient LEDs we could inside this small solid CNC aluminum housing. To call this rock light extremely BRIGHT would be an understatement.
Utlizing some of our custom written firmware that allows for dynamic cooling based on the temperature of the housing. The coolering the rock light can run the brighter it can be utlizing the unique design of the housing to maximize the surface area to dissipate heat.
With each pod measuring at over 10,000 lumens* each, it will surely #lightyourjourney.Review Specifications
Two Colors, One Housing

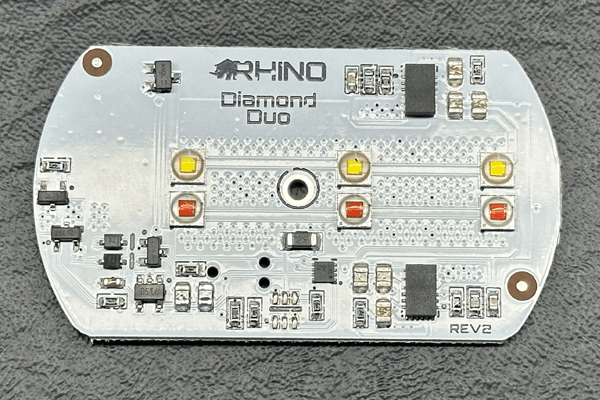

This rock light has 2 channels of leds allowing you to run 2 individual colors on ONE housing.

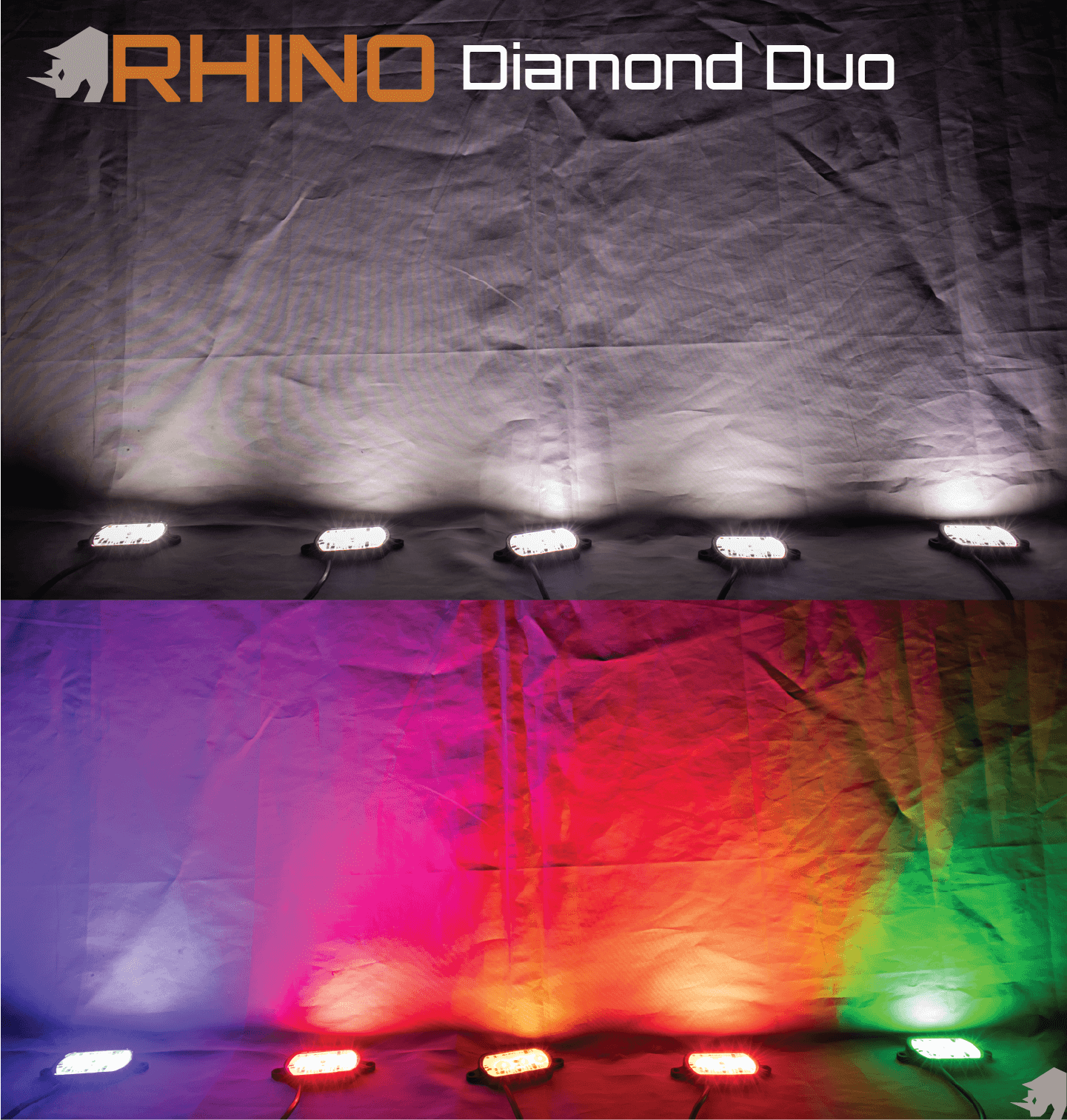

We developed a rock light for offroaders who need that DAYTIME BRIGHT 5000k white light for rock crawling but want that accent color to match your build. We have quite a few color combos to meet your needs.

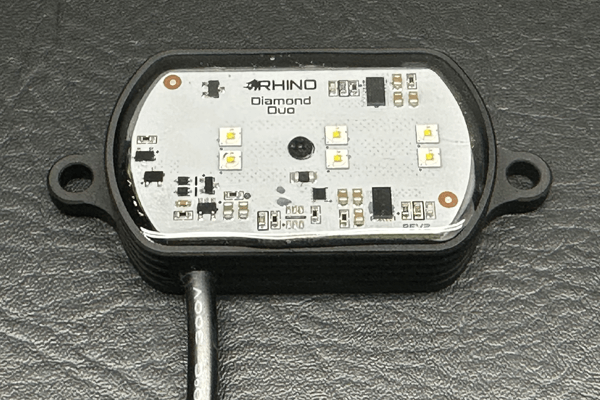

Utlizing solid CNC Milled 6061 aluminum we can create a compact heat efficient housing.

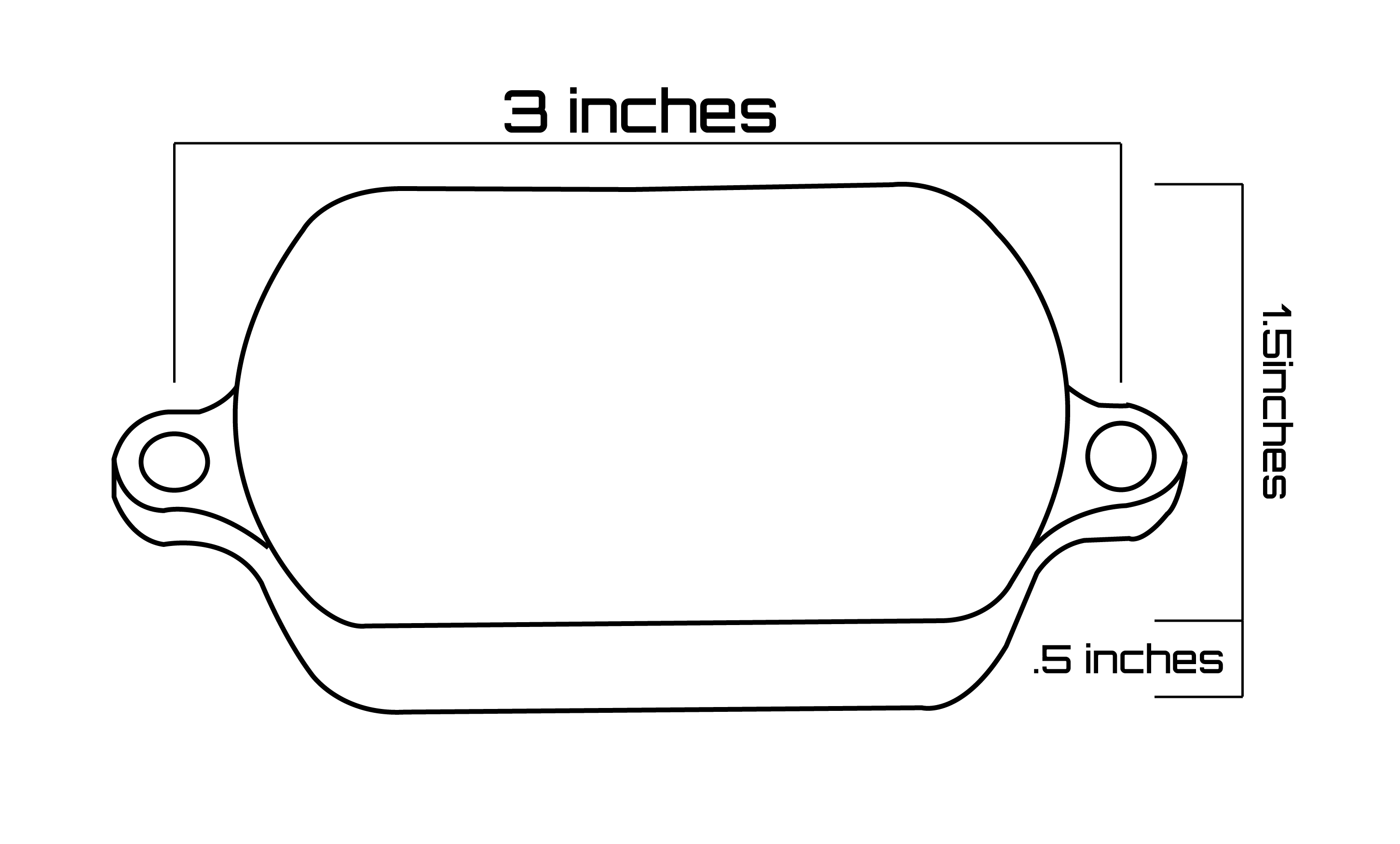

Our housing standing at 0.5 inches tall, 1.5 inches wide and 3 inch long makes this rock light pack a mean punch for its size. #sizedoesmatter

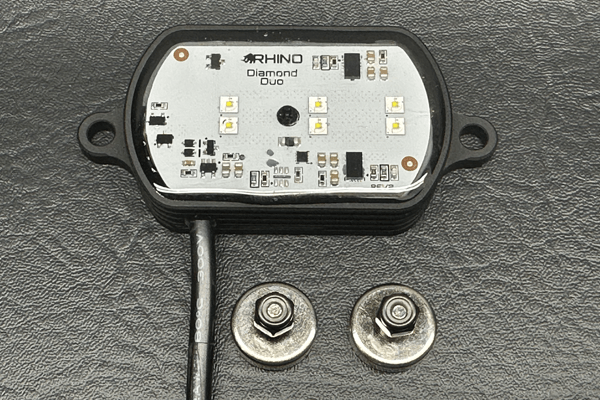

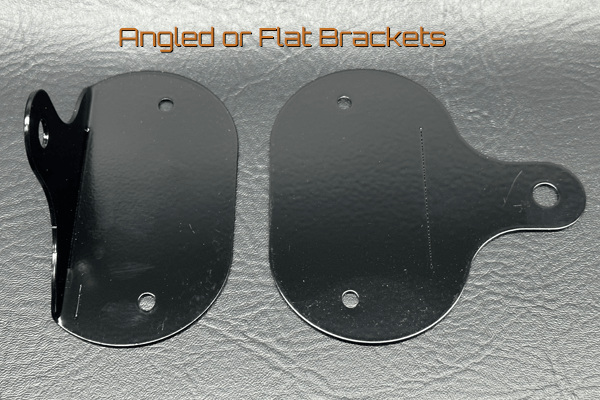

Bolt, Bracket, or Magnet your way to easy.

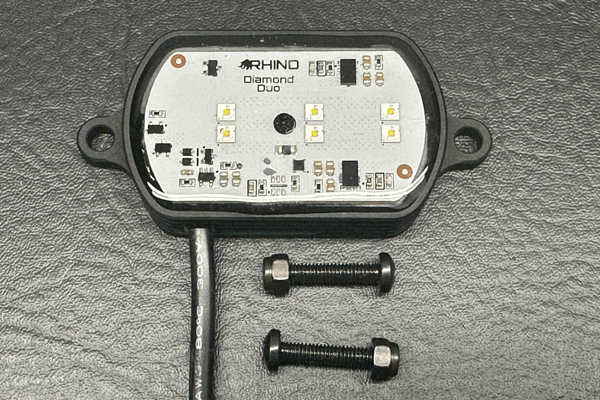

We have multi mounting options that allow you flexiablity when mounting your rock light. We have custom magnet kits available as well as included bolts with every rock light purchase.
With its compact size it allows for a lot of mounting location options.
This light is only 2.6 inches wide and 3 inches tall from point to point making it one of the most powerful lights per size on the market.
Ready to build your ultimate rock light kit?
Select your color combo, select your quantity, #lightyourjourney
We know the devil is in the details, so we are trying to highlight the most asked questions about our light. The cooler the housing is the brighter and more powerful the light will become. This firmware controlled thermal protection helps protect from over-heating to increase the longevity of the LEDs.
- Weight ~.25 lb each
- Lumens 550 - 2,243**
- Wattage 18 watts total
- Voltage 9 - 18 volts
- Rating IP69k
- Firmware Rhino 1.1
- Protection 1 Firmware Controlled Thermal
- Protection 2 Reverse Polarity
- Lifespan 75,000 hrs
- Amperage Rating .6 - 1.3 amps @ 14 volts
- Housing Color Black Anodized
- Lens Color Clear
- Lens Material Hardcoated Proprietary Resin™
- Lens Feature Diffuses Light 210°
- Housing Material 6061 Aluminum
- Primary LED Color White
- Secondary LED Color Red, Amber, Green, Blue, Orange, UV, White
* We measured using our lumen meter at 18inches away from the rock light on a white / white duo rock light
with all cree leds on pulling just over 2.5 amps at 14 volts.
** lumens will range depending on the color (red, blue, green, amber, orange, white) chosen for your light, this measurement is measured at 18 inches away.
